Hydraulically Actuated Automatic Control Valves Product Overview |
|
Product Range | DN50 – DN1000 |
Pressure Rating | PN10, PN16 and 25 |
Temperature Range | -20°C TO +70°C |
Flange Dimensions | EN1092-2 (DIN2501) |
Hydrostatic Testing | EN12266, ISO5208 |
Type Testing | EN1074-5 |
Actuation | Hydraulically actuated |
Certificates | Manufactured under a certified ISO 9001 quality system |
Applications | • Water pipelines and distribution networks • Irrigation pipelines and networks • Ground reservoirs and elevated tanks • Pumping Stations • Water hammer systems • Water treatment plant |

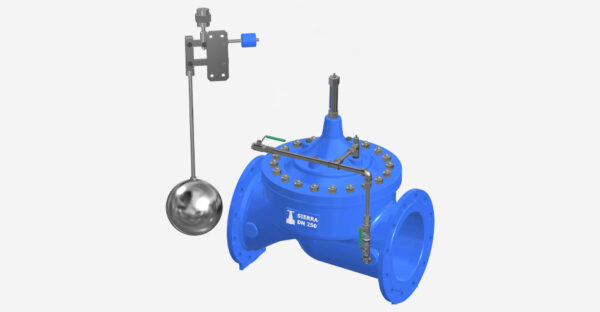

The model 1400 Modulating Float Valve is a hydraulically operated, diaphragm actuated, control valve that allows flow into the tank (reservoir) in order to maintain the level at the designated maximum. The valve modulates to maintain the tank level. As the reservoir level drops the main valve is open proportionally to increase the filling rate.
Valve Size( mm ) |
Hydraulically Actuated Automatic Control Valve |
|||
PN10 | PN16 | |||
PDF File | CAD File | PDF File | CAD File | |
50 | ACV50-10 | CADACV50-10 | ACV50-16 | CADACV50-16 |
80 | ACV80-10 | CADACV80-10 | ACV80–16 | CADACV80-16 |
100 | ACV100-10 | CADACV100-10 | ACV100-16 | CADACV100-16 |
150 | ACV150-10 | CADACV150-10 | ACV150-16 | CADACV150-16 |
200 | ACV200-10 | CADACV200-10 | ACV200-16 | CADACV200-16 |
250 | ACV250-10 | CADACV250-10 | ACV250-16 | CADACV250-16 |
300 | ACV300-10 | CADACV300-10 | ACV300-16 | CADACV300-16 |
400 | ACV400-10 | CADACV400-10 | ACV400-16 | CADACV400-16 |
500 | ACV500-10 | CADACV500-10 | ACV500-16 | CADACV500-16 |
600 | ACV600-10 | CADACV600-10 | ACV600-16 | CADACV600-16 |
700 | ACV700-10 | CADACV700-10 | ACV700-16 | CADACV700-16 |
800 | ACV800-10 | CADACV800-10 | ACV800-16 | CADACV800-16 |
900 | ACV900-10 | CADACV900-10 | ACV900-16 | CADACV900-16 |
1000 | ACV1000-10 | CADACV1000-10 | ACV1000-16 | CADACV1000-16 |
