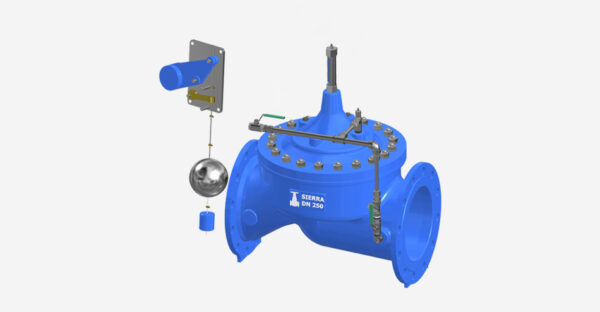

The model 1500 ON/OFF Float Valve is a non-modulating hydraulically operated, diaphragm actuated, control valve that functions as a two position valve either open or closed. It allows filling of the reservoir to the desired maximum high level, where it closes drip tight.
Hydraulically Actuated Automatic Control Valves Product Overview |
|
Product Range | DN50 – DN1000 |
Pressure Rating | PN10, PN16 and 25 |
Temperature Range | -20°C TO +70°C |
Flange Dimensions | EN1092-2 (DIN2501) |
Hydrostatic Testing | EN12266, ISO5208 |
Type Testing | EN1074-5 |
Actuation | Hydraulically actuated |
Certificates | Manufactured under a certified ISO 9001 quality system |
Applications | • Water pipelines and distribution networks • Irrigation pipelines and networks • Ground reservoirs and elevated tanks • Pumping Stations • Water hammer systems • Water treatment plant |
The model 1500 ON/OFF Float Valve is a non-modulating hydraulically operated, diaphragm actuated, control valve that functions as a two position valve either open or closed. It allows filling of the reservoir to the desired maximum high level, where it closes drip tight. The valve remains closed until the float reaches the predetermined adjustable minimum reservoir level. The valve then reopens to fill the reservoir.
Valve Size( mm ) |
Hydraulically Actuated Automatic Control Valve |
|||
PN10 | PN16 | |||
PDF File | CAD File | PDF File | CAD File | |
50 | ACV50-10 | CADACV50-10 | ACV50-16 | CADACV50-16 |
80 | ACV80-10 | CADACV80-10 | ACV80–16 | CADACV80-16 |
100 | ACV100-10 | CADACV100-10 | ACV100-16 | CADACV100-16 |
150 | ACV150-10 | CADACV150-10 | ACV150-16 | CADACV150-16 |
200 | ACV200-10 | CADACV200-10 | ACV200-16 | CADACV200-16 |
250 | ACV250-10 | CADACV250-10 | ACV250-16 | CADACV250-16 |
300 | ACV300-10 | CADACV300-10 | ACV300-16 | CADACV300-16 |
400 | ACV400-10 | CADACV400-10 | ACV400-16 | CADACV400-16 |
500 | ACV500-10 | CADACV500-10 | ACV500-16 | CADACV500-16 |
600 | ACV600-10 | CADACV600-10 | ACV600-16 | CADACV600-16 |
700 | ACV700-10 | CADACV700-10 | ACV700-16 | CADACV700-16 |
800 | ACV800-10 | CADACV800-10 | ACV800-16 | CADACV800-16 |
900 | ACV900-10 | CADACV900-10 | ACV900-16 | CADACV900-16 |
1000 | ACV1000-10 | CADACV1000-10 | ACV1000-16 | CADACV1000-16 |
