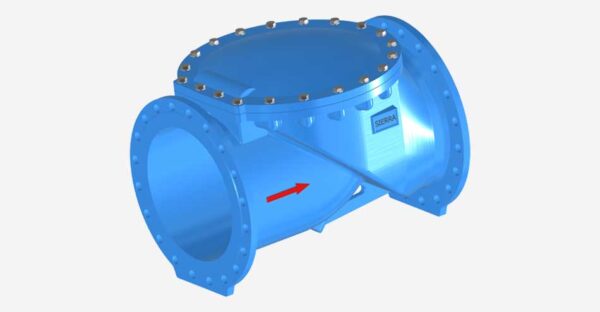

Swing Flex Check Valves

SERIES 5600 is double flanged rubber flapper (swing flex) check valve types suitable for sewage, wastewater, raw water and slurry applications. The valve has a full flow body type, the valve has an elastomeric flexible disc type and the disc is the only moving part that shall assures long life with minimal maintenance. The valve shall have no packing, shafts, arms, mechanical hinges, pivot pins or bearings to wear out

Category:

SERIES 5600 is double flanged rubber flapper (swing flex) check valve types suitable for sewage,wastewater, raw water and slurry applications. The valve has a full flow body type, the valve has an elastomeric flexible disc type and the disc is the only moving part that shall assureslong life with minimal maintenance. The valve shall have no packing, shafts, arms, mechanicalhinges, pivot pins or bearings to wear out

overview

Swing flex check valves series 5600 overview
Diameter DN65 – DN 1000
Pressure Rating PN10 – 16
Face to Face
Dimensions		 Up to DN600 ACC. TO ISO5752
DN700-1000 ACC. TO DIN3232
Temperature Range -20o to +70o
Flange Dimensions EN1092-2 (DIN2501)
Hydrostatic Testing EN12266, ISO5208
Accessories Hydraulic damper
Type Testing EN1074 – 3
Certificate Manufactured under a certified ISO 9001 quality system
Application Applications including clean and dirty water, sewage, sludge, and slurries.

Features

Main Product Features
  • Non-clog design, unrestricted flow area combined with smooth streamlined contouring allows passage of large solids and minimizing the potential for clogging.
  • One piece fully encapsulated disc to provide years of trouble-free performance.
  • One moving part, the memory-flex disc is the only moving part, assuring long life with minimal maintenance.
  • No packing, mechanical hinges, pivot pins or bearings to wear out.
  • Drop tight seating, the synthetic reinforced disc, with its integral O-ring type seal design assures positive seating at high and low pressures.
  • Non-slam closure “short disc stroke” combined with memory-flex™ disc action reduces potentially destructive water hammer.
  • Back flow actuator, for use when manual back flow operation is required. most used for priming pumps, back flushing, draining lines and system testing.
  • Flex action, the resiliency of disc ensures non slam closing.

Specifications

Swing flex check valve – TS EN
Swing flex check valve – TS AR

Materials

Materials of Construction
Swing flex check material of construction
Swing flex check valve material of construction.

TDS

swing flex PN10
swing flex PN16

Dimensions

Valve Size
Swing flex check valves dimensions
PN10 PN16
PDF File CAD File PDF File CAD File
65 SFCV65 -10 CADSFCV65 -10 SFCV65 -16 CADSFCV65 -16
80 SFCV80 -10 CADSFCV80 -10 SFCV80 -16 CADSFCV80 -16
100 SFCV100 -10 CADSFCV100 -10 SFCV100 -16 CADSFCV100 -16
150 SFCV150 -10 CADSFCV150 -10 SFCV150 -16 CADSFCV150 -16
200 SFCV200 -10 CADSFCV200 -10 SFCV200 -16 CADSFCV200 -16
250 SFCV250 -10 CADSFCV250 -10 SFCV250 -16 CADSFCV250 -16
300 SFCV300 -10 CADSFCV300 -10 SFCV300 -16 CADSFCV300 -16
350 SFCV350 -10 CADSFCV350 -10 SFCV350 -16 CADSFCV350 -16
400 SFCV400 -10 CADSFCV400 -10 SFCV400 -16 CADSFCV400 -16
450 SFCV450 -10 CADSFCV450 -10 SFCV450 -16 CADSFCV450 -16
500 SFCV500 -10 CADSFCV500 -10 SFCV500 -16 CADSFCV500 -16
600 SFCV600 -10 CADSFCV600 -10 SFCV600 -16 CADSFCV600 -16
700 SFCV700 -10 CADSFCV700 -10 SFCV700 -16 CADSFCV700 -16
800 SFCV800 -10 CADSFCV800 -10 SFCV800 -16 CADSFCV800 -16
900 SFCV900 -10 CADSFCV900 -10 SFCV900 -16 CADSFCV900 -16
1000 SFCV1000 -10 CADSFCV1000 -10 SFCV1000 -16 CADSFCV1000 -16
Basic Valve Series Acc. to BEN558    Flange PN10,16,25,40 Dimensions   Elastomer Selection Chart
Actuators flange dimensions ISO-5210-2017 ValveEngineering Ductile Iron Properties
Surface Preparation for coating Valve Inherent Flow Characteristics  Cavitation in Valves
Sizing Quarter turn valves


Manuals

Operation and Maintenance Manual

Catalogue

SERIES 5600 SWING FLEX CHECK VALVE
