Kinetic Water Air Valves

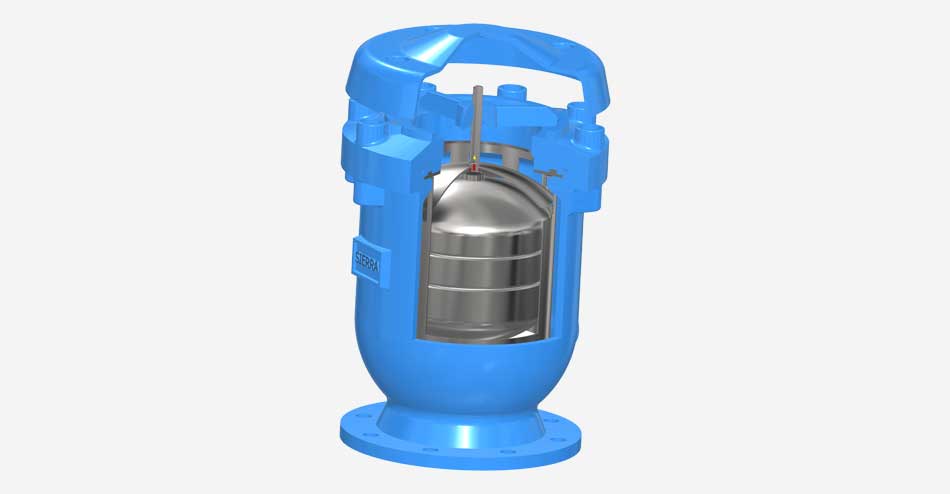

SERIES 6400 is a single chamber aero-kinetic water air valve, which designed to prevent dynamic closure under higher air velocity.Valves has double orifice and perform three functions. The three function of the valve shall include:
(1) Valves exhaust large quantities of air during the filling of a piping system and close upon liquid entry.
(2) Valve open to admit air during draining pipeline draining or in negative pressure conditions.
(3) valve releases accumulated air from a piping system while the system is in operation and under pressure.

Category:

SERIES 6400 is a single chamber aero-kinetic water air valve, which designed to prevent dynamic closure under higher air velocity. Valves has double orifice and perform three functions. The three function of the valve shall include:
(1) Valves exhaust large quantities of air during the filling of a piping system and close upon liquid entry.
(2) Valve open to admit air during draining pipeline draining or in negative pressure conditions. And
(3) valve releases accumulated air from a piping system while the system is in operation and under pressure.

Overview



Water Air Valve Product Overview
Product Range DN50 – DN200
Pressure Rating PN10, PN16
Temperature Range -20°C TO +70°C
Flange Dimensions EN1092-2 (DIN2501)
Hydrostatic Testing EN12266, ISO5208
Type Testing EN1074-4
Certificates Manufactured under a certified ISO 9001 quality system
Applications Potable and raw water, main transmission line and treatment plants



Features

Main Product Features

• Advanced design with simple mechanism, strong float to prevent cracking during
• sudden water hammer and quick closure.
• Aerokinetic mechanism to resist blow shut under higher air velocity even up to sonic
• velocity of air.

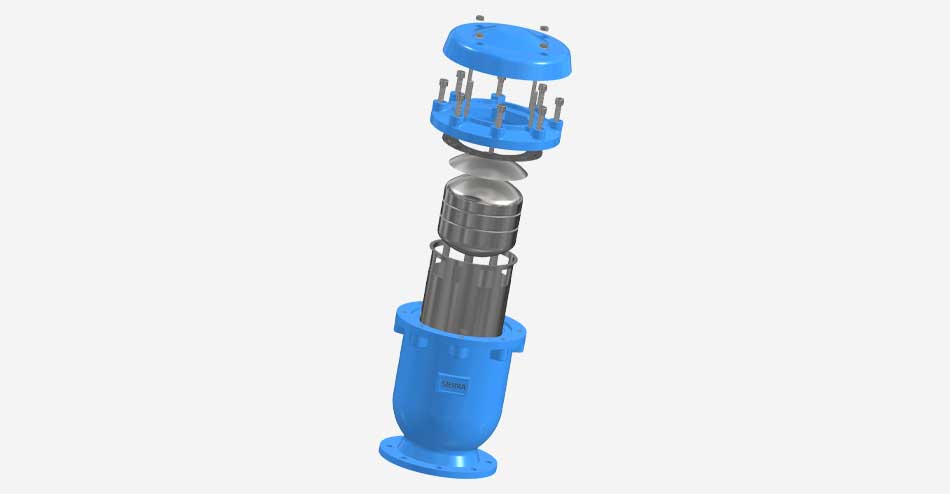

• No arms or levers to prevent vibrating, bending, direct closure of the float. Smooth cage
• outside of the float, keep float moving in specified guide rail.
• Bottom rubber buffer for collision prevention, and drain easy with proper
• holes around the cage during vacuum.
• Fully fusion epoxy coated inside and outside of valve body for long term services.
• Maintenance can be easily performed from the top without removing the air valve from the pipe

Specifications

Kinetic Water Air Valves – TS AR
Kinetic Water Air Valves – TS EN

Materials

Kinetic Water Air Valves Material Of Construction
Air valves material of construction
Anti-shock air valves material of construction

TDS

Kinetic  Water Air valves PN10
Kinetic Water  Air valves PN16

Dimensions



DN

 Water Kinetic Air Valves Dimensions
PN10 PN16
2D PDF CAD 3D PDF STEP 2D PDF CAD 3D PDF STEP
50 2PWA50 CWA50 3PWA50 STWA50 2PWA50 CWA50 3PWA50 STWA50
65 2PWA65 CWA65 3PWA65 STWA65 2PWA65 CWA65 3PWA65 STWA65
80 2PWA80 CWA80 3PWA80 STWA80 2PWA80 CWA80 3PWA80 STWA80
100 2PWA100 CWA100 3PWA100 STWA100 2PWA100 CWA100 3PWA100 STWA100
150 2PWA150 CWA150 3PWA150 STWA150 2PWA150 CWA150 3PWA150 STWA150
200 2PWA200 CWA200 3PWA200 STWA200 2PWA200 CWA200 3PWA200 STWA200
250 2PWA250 CWA250 3PWA250 STWA250 2PWA250 CWA250 3PWA250 STWA250
Basic Valve Series Acc. to BEN558    Flange PN10,16,25,40 Dimensions   Elastomer Selection Chart
Actuators flange dimensions ISO-5210-2017 ValveEngineering Ductile Iron Properties
Surface Preparation for coating Valve Inherent Flow Characteristics  Cavitation in Valves
Sizing Quarter turn valves


Manuals

Operation and Maintenance Manual

Catalogue

SERIES 6400 KINETIC WATER AIR VALVE
