Sewage Air Valve

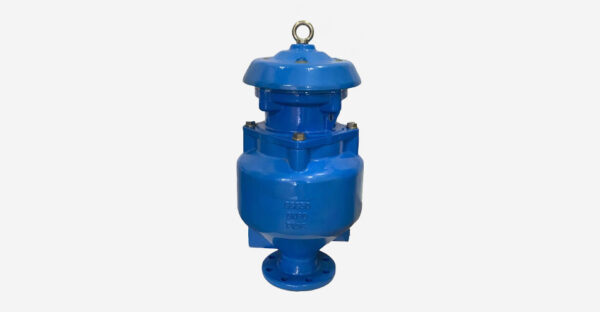

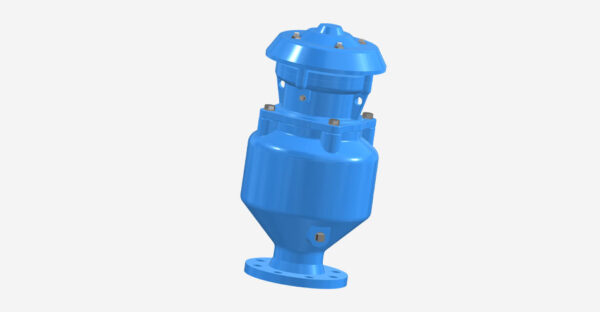

SERIES 6600 is a single chamber sewage air valve, which designed to prevent dynamic closure under higher air velocity. Valves has double orifice and perform three functions. The three function of the valve shall include:
(1) Valves exhaust large quantities of air during the filling of a piping system and close upon liquid entry.
(2) Valve open to admit air during draining pipeline draining or in negative pressure conditions.
(3) valve releases accumulated air from a piping system while the system is in operation and under pressure.



Category:

SERIES 6600 is a single chamber sewage air valve, which designed to prevent dynamic closure under higher air velocity. Valves has double orifice and perform three functions. The three function of the valve shall include:
(1) Valves exhaust large quantities of air during the filling of a piping system and close upon liquid entry.
(2) Valve open to admit air during draining pipeline draining or in negative pressure conditions.
(3) valve releases accumulated air from a piping system while the system is in operation and under pressure.

overview

Wastewater air valves series 6600 overview
Diameter DN50 – DN 200
Pressure Rating PN10 – 16
Temperature Range -20o to +70o
Flange Dimensions EN1092-2 (DIN2501)
Hydrostatic Testing EN12266, ISO5208
Type Testing EN1074 – 4
Certificate Manufactured under a certified ISO 9001 quality system
Application Applications including Sewage main transmission lines, and wastewater treatment plants.

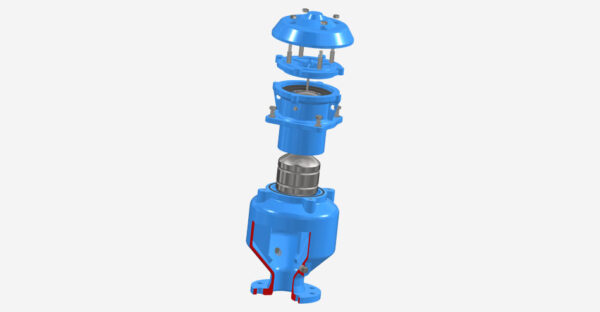

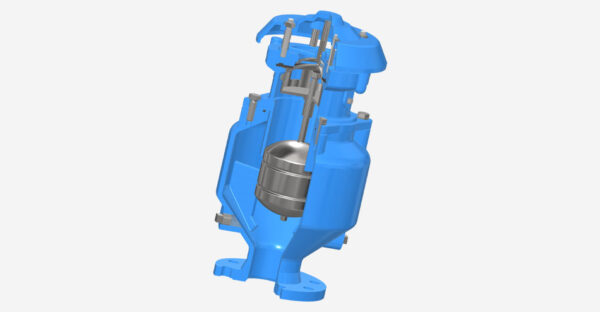

Features

Main Product Features
  • Large lower body designed with strongly sloped funnel shaped walls to avoid deposit of grease or other sold material.
  • Four ribs obtained by casting to guide the stainless-steel float.
  • Upper body containing a casing that protects the air release device against spurts during rapid filling.
  • Maintenance can be easily performed from the top without removing the air valve from the pipe.
  • Large AISI 316 stainless steel floats, placed on the lower body, and connected through a stainless-steel stem to the air release system.
  • Internal body guide and upper round wall keep float moving on its rail and keep liquid turbulence flow within this area.



Specifications

Wastewater air valve – TS EN
Wastewater air valve – TS AR

Materials

Sewage air valves material of construction
Sewage air material of construction

TDS

Sewage air valves PN10
Sewage air valves PN16

Dimensions



DN

 Sewage Air Valves Dimensions
PN10 PN16
2D PDF CAD 3D PDF STEP 2D PDF CAD 3D PDF STEP
50 2PSA50 CSA50 3PSA50 STSA50 2PSA50 CSA50 3PSA50 STSA50
65 2PSA65 CSA65 3PSA65 STSA65 2PSA65 CSA65 3PSA65 STSA65
80 2PSA80 CSA80 3PSA80 STSA80 2PSA80 CSA80 3PSA80 STSA80
100 2PSA100 CSA100 3PSA100 STSA100 2PSA100 CSA100 3PSA100 STSA100
150 2PSA150 CSA150 3PSA150 STSA150 2PSA150 CSA150 3PSA150 STSA150
200 2PSA200 CSA200 3PSA200 STSA200 2PSA200 CSA200 3PSA200 STSA200
Basic Valve Series Acc. to BEN558    Flange PN10,16,25,40 Dimensions   Elastomer Selection Chart
Actuators flange dimensions ISO-5210-2017 ValveEngineering Ductile Iron Properties
Surface Preparation for coating Valve Inherent Flow Characteristics  Cavitation in Valves
Sizing Quarter turn valves
